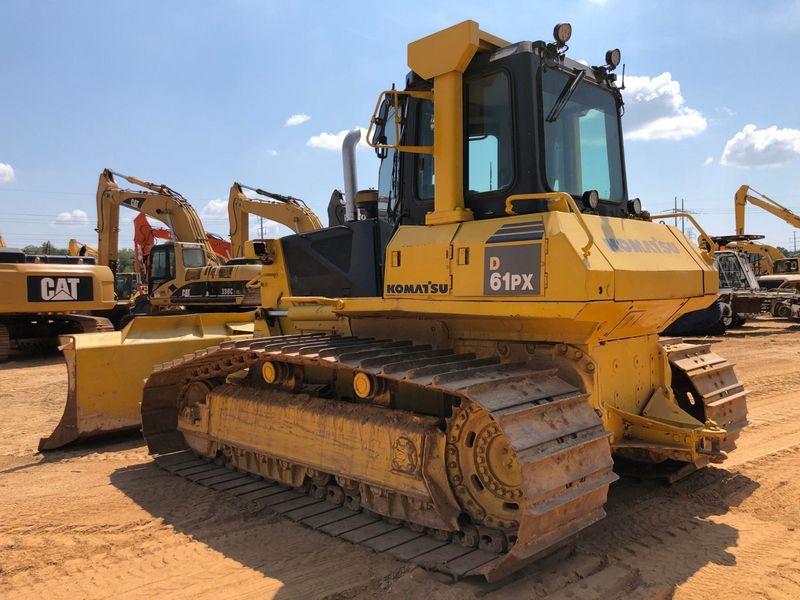

Komatsu D61PX-15EO
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 16.51 ft in (5030 mm) |
| Width Over Tracks | 12.67 ft in (3860 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
| Length Of Track On Ground | 10.41 ft in (3170 mm) |
| Ground Clearance | 1.3 ft in (395 mm) |
Undercarriage
| Track Gauge | 10.41 ft in (3170 mm) |
| Standard Shoe Size | 33.86 in (860 mm) |
| Number Of Shoes Per Side | 46 |
| Ground Pressure | 4.83 psi (33.31 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Contact Area | 8451 in2 (5.46 m2) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | SAA6D107E-1 |
| Gross Power | 170 hp (126.8 kw) |
| Net Power | 168 hp (125.3 kw) |
| Power Measured @ | 1850 rpm |
| Displacement | 408 cu in (6.7 L) |
Operational
| Operating Weight | 41248.5 lb (18710 kg) |
| Fuel Capacity | 103.1 gal (390 L) |
| Cooling System Fluid Capacity | 8.5 gal (32 L) |
| Engine Oil Capacity | 7.7 gal (29 L) |
| Final Drives Fluid Capacity | 7.6 gal (28.5 L) |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 5.4 mph (8.7 km/h) |
| Max Speed - Reverse | 6.8 mph (11 km/h) |
Hydraulic System
| Relief Valve Pressure | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 51.6 gal/min (195 L/min) |
