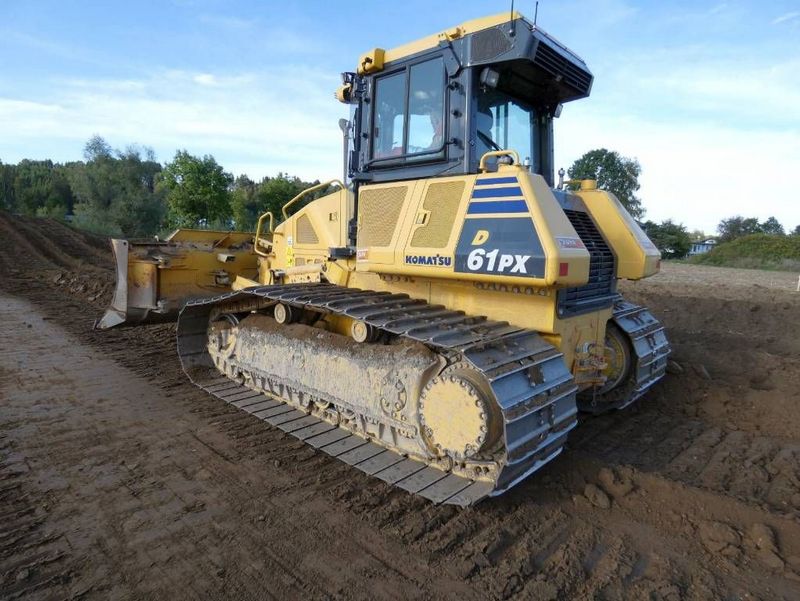

Komatsu D61PX-23
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 12.67 ft in (3860 mm) |
| Height To Top Of Cab | 10.44 ft in (3180 mm) |
| Ground Clearance | 1.28 ft in (390 mm) |
| Length W/O Blade | 17.98 ft in (5480 mm) |
| Wheelbase | 10.39 ft in (3165 mm) |
Undercarriage
| Track Gauge | 6.99 ft in (2130 mm) |
| Standard Shoe Size | 33.86 in (860 mm) |
| Ground Contact Area | 8451 in2 (5.46 m2) |
| Number Of Shoes Per Side | 46 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 4.87 psi (33.58 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | SAA6D107E-2 |
| Gross Power | 170 hp (126.8 kw) |
| Net Power | 168 hp (125.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 408 cu in (6.7 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 41138.3 lb (18660 kg) |
| Fuel Capacity | 98.3 gal (372 L) |
| Cooling System Fluid Capacity | 11.9 gal (45 L) |
| Engine Oil Capacity | 7.2 gal (27 L) |
| Hydraulic Fluid Capacity | 26.7 gal (101 L) |
| Final Drives Fluid Capacity | 2.2 gal (8.1 L) |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 5.6 mph (9.1 km/h) |
| Max Speed - Reverse | 5.6 mph (9.1 km/h) |
Hydraulic System
| Pump Type | Piston-type |
| Relief Valve Pressure | 3974 psi (27399.8 kPa) |
| Pump Flow Capacity | 45.2 gal/min (171 L/min) |
