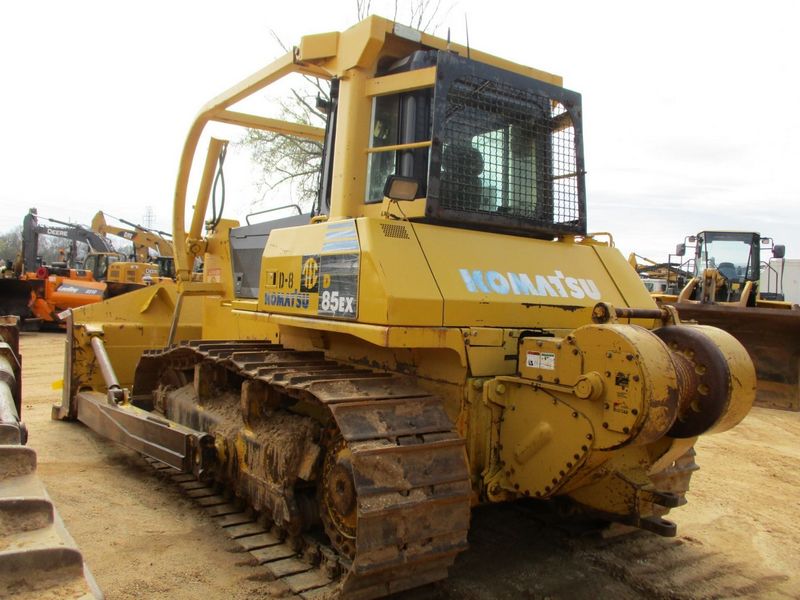

Komatsu D85EX-15SL
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 19.48 ft in (5935 mm) |
| Width Over Tracks | 8.42 ft in (2560 mm) |
| Height To Top Of Cab | 12.08 ft in (3660 mm) |
| Length Of Track On Ground | 10 ft in (3050 mm) |
| Ground Clearance | 1.5 ft in (450 mm) |
| Length W/O Blade | 16.33 ft in (4963 mm) |
Undercarriage
| Track Gauge | 6.57 ft in (2000 mm) |
| Standard Shoe Size | 22 in (560 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Contact Area | 5295 in2 (3.42 m2) |
| Track Pitch | 79 in (2000 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-5 |
| Net Power | 240 hp (179 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 674 cu in (11.1 L) |
Operational
| Operating Weight | 62245 lb (28234 kg) |
Standard Blade
| Width | 12 ft in (3635 mm) |
| Height | 7.5 in (2286 mm) |
