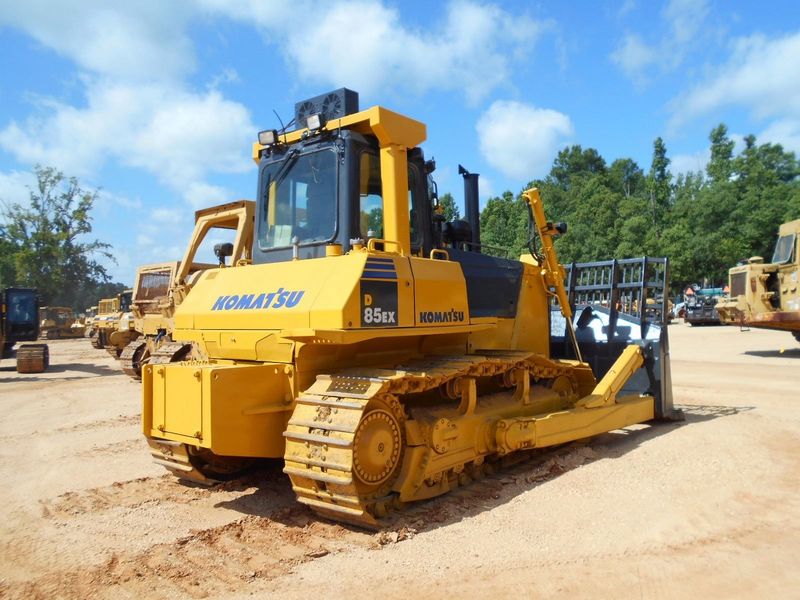

Komatsu D85EX-15
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 19.02 ft in (5795 mm) |
| Width Over Tracks | 6.58 ft in (2000 mm) |
| Height To Top Of Cab | 10.92 ft in (3324 mm) |
| Length Of Track On Ground | 10 ft in (3050 mm) |
| Ground Clearance | 1.5 ft in (450 mm) |
Undercarriage
| Track Gauge | 6.57 ft in (2000 mm) |
| Standard Shoe Size | 22 in (560 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 10.7 psi (73.6 kPa) |
| Number Of Shoes Per Side | 41 |
| Ground Contact Area | 5295 in2 (3.42 m2) |
| Track Pitch | 79 in (2000 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-5 |
| Gross Power | 266 hp (199 kw) |
| Net Power | 240 hp (179 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 674 cu in (11.1 L) |
| Aspiration | Turbocharged, air-to-air aftercooled, cooled EGR |
Operational
| Operating Weight | 61950 lb (28100 kg) |
| Fuel Capacity | 129 gal (490 L) |
| Cooling System Fluid Capacity | 15.5 gal (58 L) |
| Engine Oil Capacity | 10 gal (38 L) |
| Hydraulic Fluid Capacity | 17.7 gal (67 L) |
| Final Drives Fluid Capacity | 6.9 gal (26 L) |
Transmission
| Transmission Type | Komatsu TORQFLOW transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.3 mph (10.1 km/h) |
| Max Speed - Reverse | 8.1 mph (13 km/h) |
Hydraulic System
| Relief Valve Pressure | 3270 psi (22545.9 kPa) |
| Pump Flow Capacity | 51.6 gal/min (195 L/min) |
Standard Blade
| Width | 12 ft in (3635 mm) |
