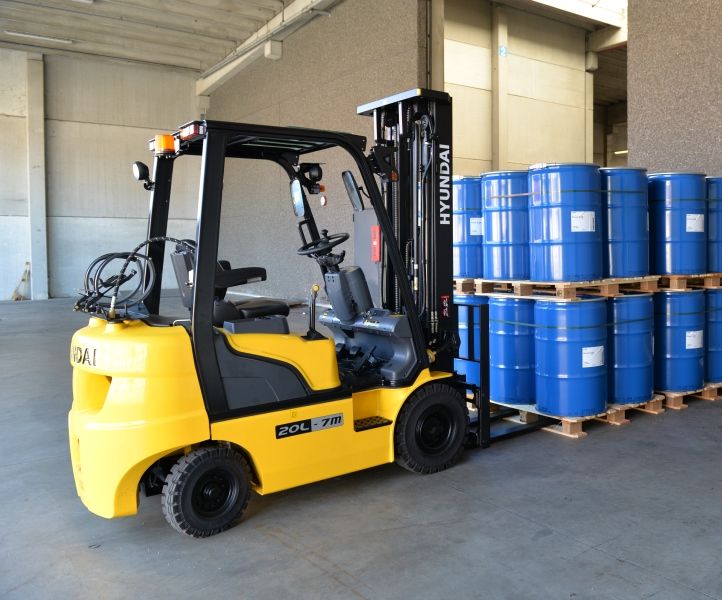

Hyundai 20L-7
Contents:
Dimensions
| Length To Fork Face | 8.3 ft in (2527 mm) |
| Overall Width | 3.81 ft in (1160 mm) |
| Overall Height - Mast Lowered | 7.14 ft in (2175 mm) |
| Wheelbase | 5.42 ft in (1650 mm) |
| Ground Clearance | 4.49 in (114 mm) |
| Height To Top Of Overhead Guard | 7.09 ft in (2160 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 7.39 ft in (2252 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 4000 lb (1814.37 kg) |
| Load Center | 24 in (609.6 mm) |
| Lift Speed | 114.18 ft/min (34.8 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | HMC Beta |
| Power | 49.7 hp (37 kw) |
| Displacement | 120.6 cu in (2 L) |
| Fuel Type | Gas/Petrol |
Operational
| Operating Weight | 7663 lb (3475.9 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.8 mph (20.6 km/h) |
