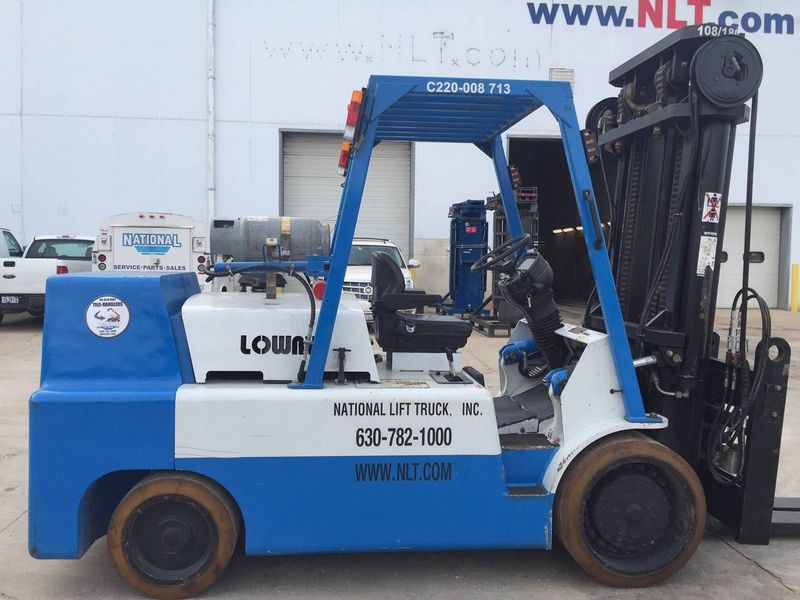

Lift King L220XD
Contents:
Dimensions
| Length To Fork Face | 11.32 ft in (3448 mm) |
| Overall Width | 4.66 ft in (1420 mm) |
| Wheelbase | 7.01 ft in (2134 mm) |
| Ground Clearance | 7.01 in (178 mm) |
| Height To Top Of Overhead Guard | 7.92 ft in (2414.02 mm) |
| Max Fork Height | 8.34 ft in (2540 mm) |
| Turning Radius | 9.96 ft in (3035 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 22000 lb (9979.04 kg) |
Engine
| Engine Model | GM Vortec V8 |
| Power | 150 hp (111.9 kw) |
| Displacement | 347.9 cu in (5.7 L) |
| Fuel Type | LPG |
Operational
| Operating Weight | 27800 lb (12609.9 kg) |
| Tire Type | solid cushion front 28x12x22 rear 22x8x16 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.7 mph (22.1 km/h) |
