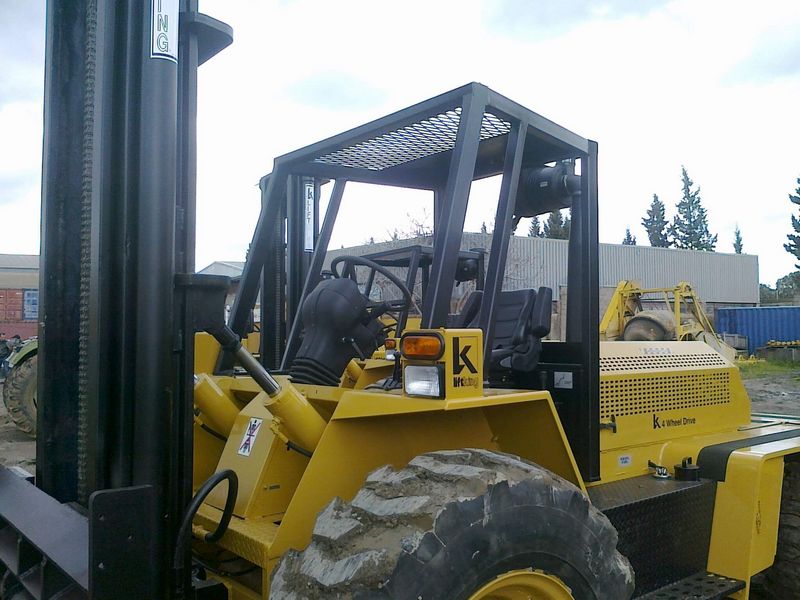

Lift King L250XD
Contents:
Dimensions
| Length To Fork Face | 11.82 ft in (3600 mm) |
| Overall Width | 4.67 ft in (1422 mm) |
| Overall Height - Mast Lowered | 8.84 ft in (2692 mm) |
| Wheelbase | 7.01 ft in (2134 mm) |
| Ground Clearance | 7.01 in (178 mm) |
| Height To Top Of Overhead Guard | 8.83 ft in (2691.39 mm) |
| Max Fork Height | 7.5 ft in (2286 mm) |
| Turning Radius | 10.21 ft in (3111 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 25000 lb (11339.81 kg) |
Engine
| Engine Model | GM Vortec V8 |
| Power | 140 hp (104.4 kw) |
| Displacement | 347.9 cu in (5.7 L) |
| Fuel Type | LPG |
Operational
| Operating Weight | 36220 lb (16429.2 kg) |
| Tire Type | solid cushion front 28x14x22 rear 22x8x16 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.6 mph (13.9 km/h) |
