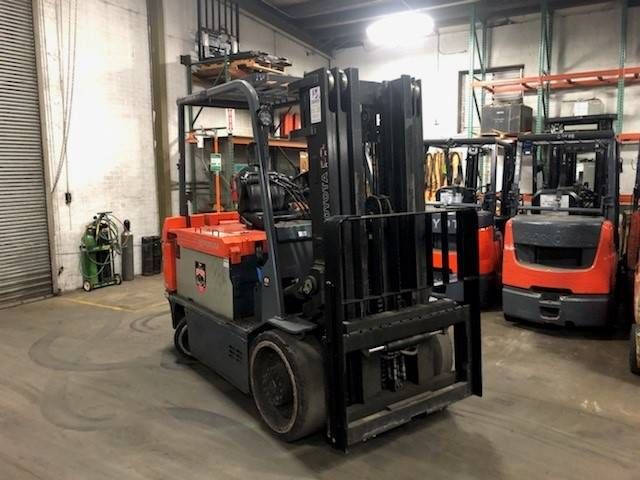

Toyota 7FBCU55
Contents:
Dimensions
| Length To Fork Face | 9.42 ft in (2870 mm) |
| Overall Width | 4.43 ft in (1350 mm) |
| Wheelbase | 5.81 ft in (1770 mm) |
| Height To Top Of Overhead Guard | 14.56 ft in (4435 mm) |
| Max Fork Height | 10.06 ft in (3065 mm) |
| Free Lift | 4.93 in (125 mm) |
| Front Wheel Tread Width | 42.92 in (1090 mm) |
| Gradeability | 14 % |
| Rear Wheel Tread Width - Max | 43.51 in (1105 mm) |
| Right Angle Stack | 9.75 ft in (2970 mm) |
| Turning Radius | 8.01 ft in (2440 mm) |
Mast
| Lift Speed | 53 ft/min (16.16 m/min) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 12000 lb (5443.11 kg) |
Electrical System
| Control Drive | Transistor Invertor |
| Control Power Steering | Transistor Chopper |
| Battery Voltage | 36 V |
| Battery Capacity | 1700 Ah |
Engine
| Engine Model | electric engine |
Operational
| Operating Weight | 15010 lb (6808.5 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9 mph (14.5 km/h) |
| Drawbar Pull | 4780 lb (2168.2 kg) |
| Tire Size | Front - 28 x 10 x 22, Rear -18 x 8 x 12-1/8 |
| Hydraulic System Relief Valve Pressure | 2630 psi (18133.2 kPa) |
