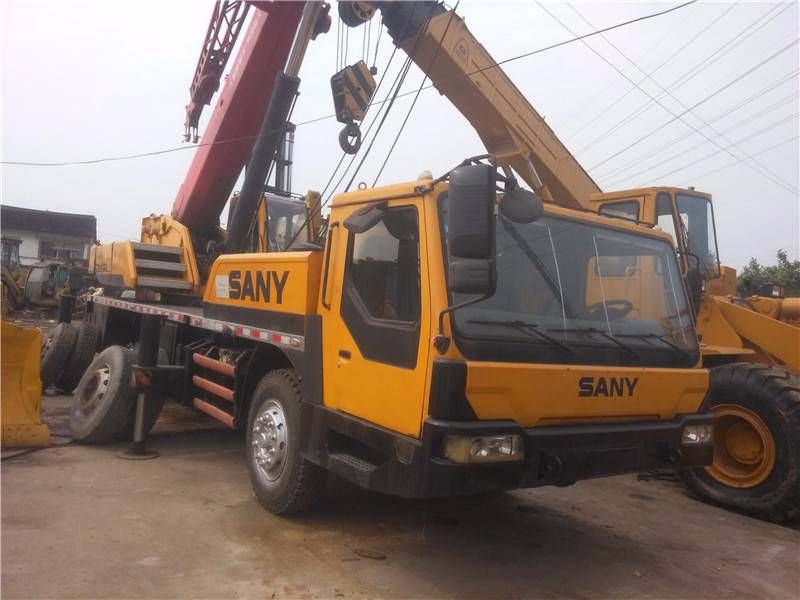

Sany QY25C
Browse All Sany or Hydraulic Truck Crane Models
Contents:
Boom
| Min Working Radius | 9.85 ft in (3 m) |
| Max Lift Capacity | 55115.57 lb (25000 kg) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 41.34 ft in (12600 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 11.32 ft in (3450 mm) |
| Ground Clearance | 0.89 ft in (270 mm) |
| Carrier Length | 33.37 ft in (10169 mm) |
| Upper Structure Tail Swing Radius | 8.26 ft in (2515 mm) |
Carrier Engine
| Make | Sany |
| Model | ISLe290 |
| Gross Power | 285.7 hp (213 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 774.5 lb ft (1050 Nm) |
| Torque Measured @ | 1900 rpm |
Operational
| Operating Weight | 64816 lb (29400 kg) |
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Tire Size | 11.00-20-18PR |
Transmission
| Max Speed - Forward | 49.8 mph (80 km/h) |
