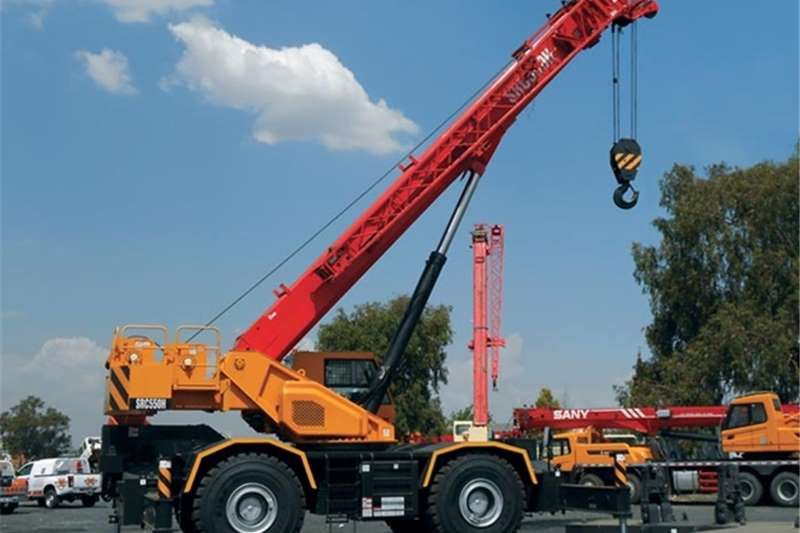

Sany SRC550H
Browse All Sany or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 37.73 ft in (11.5 m) |
| Max Height @ Max Raise Angle - No Jib | 141.08 ft in (43 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 121254.24 lb (55000 kg) |
Dimensions
| Transport Length | 46.92 ft in (14300 mm) |
| Transport Width | 10.83 ft in (3300 mm) |
| Transport Height | 12.34 ft in (3760 mm) |
| Wheelbase | 157.49 in (4000 mm) |
| Ground Clearance | 1.66 ft in (503 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Carrier/Base Length | 27706.7 ft in (8445 m) |
| Upper Structure Tail Swing Radius | 14.28 ft in (4350 mm) |
Engine
| Gross Power | 265.6 hp (198 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 715.5 lb ft (970 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 99164 lb (44980 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 196.3 gal (743 L) |
| Operating Voltage | 24 V |
| Tire Size | 29.5 R 25 |
Transmission
| Transmission Type | Automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
