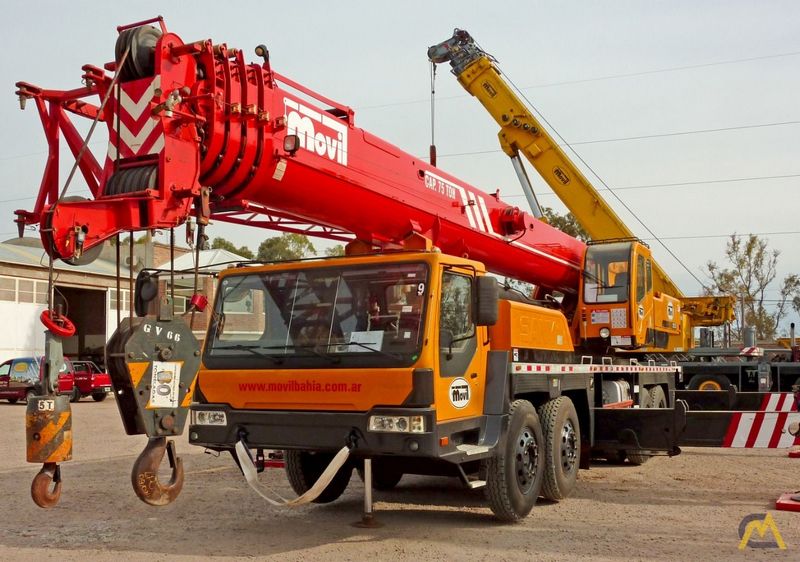

Sany STC75
Browse All Sany or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38.72 ft in (11.8 m) |
| Max Height @ Max Raise Angle - No Jib | 147.64 ft in (45 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 150000.09 lb (68038.9 kg) |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 46.26 ft in (14100 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.14 ft in (3700 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Gradeability | 40 % |
Carrier Engine
| Gross Power | 368.8 hp (275 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1143.3 lb ft (1550 Nm) |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 57320.2 lb (26000 kg) |
| Turning Radius | 5.1 ft in (1550 mm) |
Transmission
| Max Speed - Forward | 49.8 mph (80 km/h) |
