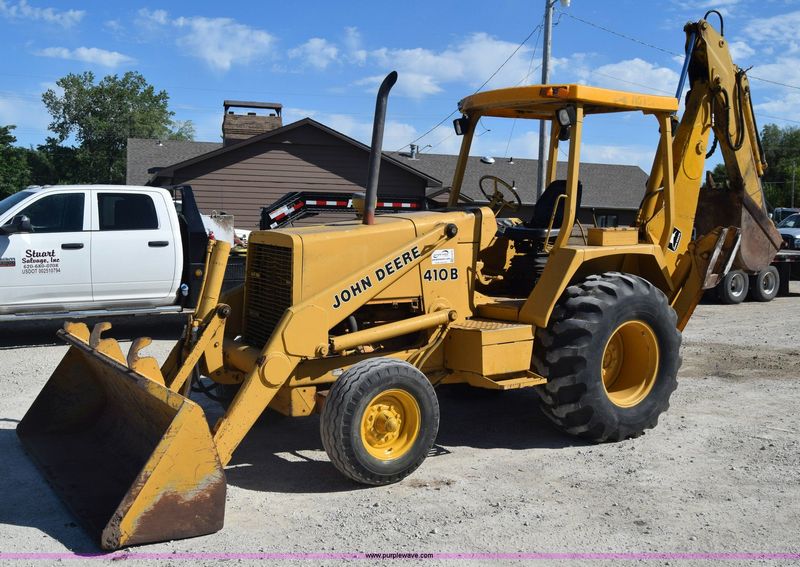

John Deere 410B
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.75 ft in (3590 mm) |
| Reach From Swivel - Std | 17.58 ft in (5360 mm) |
| Dig Depth - Std | 14.5 ft in (4420 mm) |
| Reach At Load Height - Std | 21.42 ft in (6530 mm) |
| Dig Depth - Ext | 18.5 ft in (5640 mm) |
| Bucket Dig Force - Ext | 10200 lb (4625 kg) |
| Bucket Dig Force - Std | 10200 lb (4625 kg) |
| Reach At Load Height - Ext | 25.42 ft in (7750 mm) |
| Load At Max Lift - Ext | 2440 lb (1110 kg) |
| Load At Max Lift - Std | 4200 lb (1920 kg) |
| Load Height - Ext | 12.83 ft in (3910 mm) |
| Reach From Swivel - Ext | 21.58 ft in (6580 mm) |
Dimensions
| Transport Length | 23 ft in (7010 mm) |
| Transport Width | 7.68 ft in (2340 mm) |
| Transport Height | 11.42 ft in (3480 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.01 ft in (305 mm) |
Loader
| Clearance At Max Dump Height | 9 ft in (2740 mm) |
| Reach At Max Dump Height | 2.33 ft in (710 mm) |
| Dig Depth | 4 in (100 mm) |
| Bucket Breakout Force | 7800 lb (3540 kN) |
| Bucket Width | 92 in (2340 mm) |
| Bucket Capacity | 1.25 yd3 (1 m3) |
| Lift Capacity At Full Height | 5300 lb (2400 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4-219D |
| Gross Power | 66 hp (49.3 kw) |
| Net Power | 62 hp (46.3 kw) |
| Power Measured @ | 2500 rpm |
| Torque Measured @ | 1300 rpm |
| Net Torque Rise | 20 % |
| Net Max Torque | 156 lb ft (211.6 Nm) |
| Aspiration | Naturally aspirated |
| Displacement | 219 cu in (3.6 L) |
Operational
| Fuel Capacity | 23 gal (87 L) |
| Max Weight | 14400 lb (6545 kg) |
| Hydraulic System Fluid Capacity | 19 gal (72 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 3.5 gal (13 L) |
| Turning Radius | 10.3 ft in (3120 mm) |
| Tire Size Front - 2wd / 4wd | 11L-15,10PR,F3;12.00-16.5,8PR,R4 |
| Rear Tires Size 2wd/4wd | 19.5L-24,10PR,R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 35 amps |
Transmission
| Transmission Type | Manual shift with first and second speeds having sliding collar engagement and third and fourth speeds engaged in cone-type synchronizers. |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.3 mph (35.9 km/h) |
| Max Speed Reverse | 25.9 mph (41.7 km/h) |
Hydraulic
| Pump Type | 8 radial piston, closed-center, variable flow, constant pressure |
| Pump Flow Capacity | 30 gal/min (1.9 L/min) |
| Relief Valve Pressure | 2500 psi (17238 kPa) |
