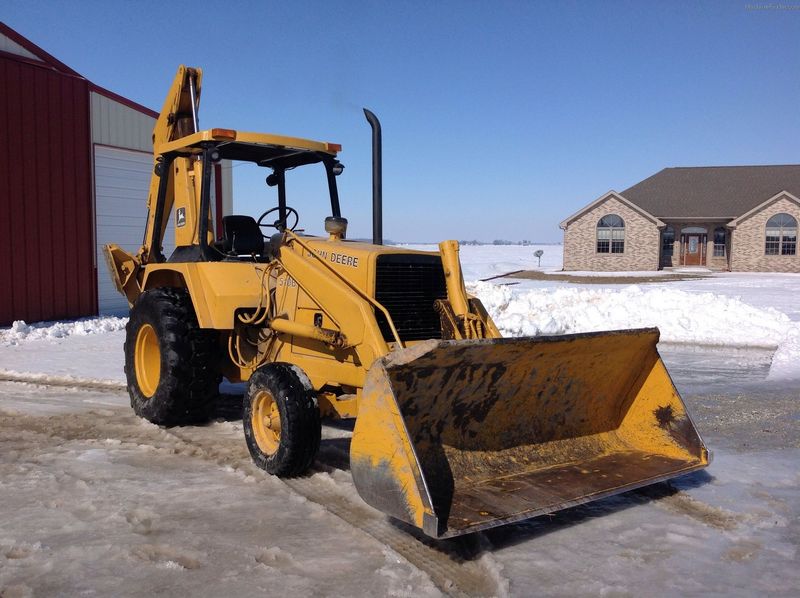

John Deere 510B
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.83 ft in (3910 mm) |
| Reach From Swivel - Std | 19.18 ft in (3910 mm) |
| Dig Depth - Std | 15.67 ft in (4780 mm) |
| Reach At Load Height - Std | 22.17 ft in (6750 mm) |
| Load Height - Ext | 13.83 ft in (4220 mm) |
| Bucket Dig Force - Ext | 9800 lb (4445 kg) |
| Bucket Dig Force - Std | 9800 lb (4445 kg) |
| Dig Depth - Ext | 20.67 ft in (6300 mm) |
| Reach At Load Height - Ext | 27.92 ft in (8500 mm) |
| Load At Max Lift - Ext | 1735 lb (790 kg) |
| Load At Max Lift - Std | 5550 lb (2523 kg) |
| Reach From Swivel - Ext | 13.83 ft in (4220 mm) |
Dimensions
| Transport Length | 22.1 ft in (7000 mm) |
| Transport Width | 7.68 ft in (2340 mm) |
| Transport Height | 12.83 ft in (5840 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Height To Top Of Suspended Cab | 8.75 ft in (2670 mm) |
Loader
| Clearance At Max Dump Height | 8.75 ft in (2670 mm) |
| Reach At Max Dump Height | 2.5 ft in (762 mm) |
| Dig Depth | 4 in (100 mm) |
| Bucket Breakout Force | 9200 lb (4173 kN) |
| Bucket Width | 92 in (2340 mm) |
| Bucket Capacity | 1.25 yd3 (1 m3) |
| Lift Capacity At Full Height | 6180 lb (2810 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4-276D |
| Gross Power | 76 hp (56.7 kw) |
| Net Power | 70 hp (54.7 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1300 rpm |
| Net Torque Rise | 22 % |
| Net Max Torque | 204 lb ft (277 Nm) |
| Aspiration | Naturally aspirated |
| Displacement | 276 cu in (4.6 L) |
Operational
| Fuel Capacity | 23 gal (87.1 L) |
| Max Weight | 15400 lb (7000 kg) |
| Hydraulic System Fluid Capacity | 21 gal (79.5 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16.1 L) |
| Transmission Fluid Capacity | 21 gal (79.5 L) |
| Turning Radius | 10.3 ft in (3120 mm) |
| Tire Size Front - 2wd / 4wd | 11L-16, 12PR F3 |
| Rear Tires Size 2wd/4wd | 19.5L-24,10PR R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 35 amps |
Transmission
| Transmission Type | Manual shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.1 mph (35.6 km/h) |
| Max Speed Reverse | 25.7 mph (41.1 km/h) |
Hydraulic
| Pump Type | 8 radial piston, closed-center, variable-flow, constant pressure |
| Pump Flow Capacity | 35 gal/min (2.3 L/min) |
| Relief Valve Pressure | 2500 psi (17238 kPa) |
