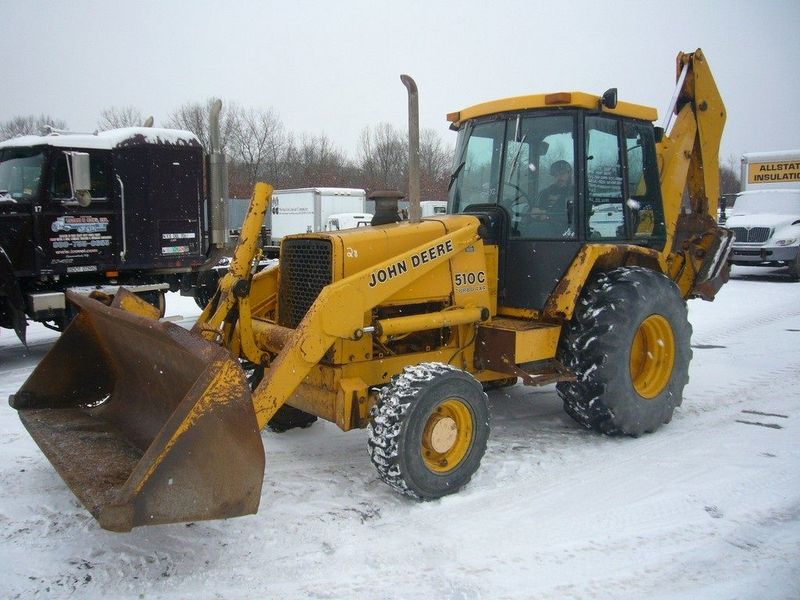

John Deere 510C
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 13 ft in (3960 mm) |
| Reach From Swivel - Std | 19.93 ft in (6070 mm) |
| Dig Depth - Std | 16.43 ft in (5000 mm) |
| Reach At Load Height - Std | 23.67 ft in (7210 mm) |
| Load Height - Ext | 15.25 ft in (4650 mm) |
| Bucket Dig Force - Ext | 11000 lb (4990 kg) |
| Bucket Dig Force - Std | 11000 lb (4990 kg) |
| Dig Depth - Ext | 15.25 ft in (4650 mm) |
| Reach At Load Height - Ext | 27.83 ft in (8430 mm) |
| Load At Max Lift - Ext | 2400 lb (1090 kg) |
| Load At Max Lift - Std | 5400 lb (2450 kg) |
| Reach From Swivel - Ext | 23.92 ft in (7290 mm) |
Dimensions
| Transport Length | 23.33 ft in (7110 mm) |
| Transport Width | 7.68 ft in (2340 mm) |
| Transport Height | 12.08 ft in (3680 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Height To Top Of Suspended Cab | 8.75 ft in (2680 mm) |
Loader
| Clearance At Max Dump Height | 8.75 ft in (2670 mm) |
| Reach At Max Dump Height | 2.5 ft in (762 mm) |
| Dig Depth | 4 in (100 mm) |
| Bucket Breakout Force | 9700 lb (43.1 kN) |
| Bucket Width | 92 in (2340 mm) |
| Bucket Capacity | 1.3 yd3 (1 m3) |
| Lift Capacity At Full Height | 7200 lb (3265 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Gross Power | 95 hp (71 kw) |
| Net Power | 90 hp (67 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1300 rpm |
| Net Torque Rise | 25 % |
| Net Max Torque | 268 lb ft (363 Nm) |
| Aspiration | Turbocharged |
| Displacement | 276 cu in (4.6 L) |
Operational
| Fuel Capacity | 38 gal (144 L) |
| Max Weight | 15400 lb (7000 kg) |
| Hydraulic System Fluid Capacity | 21 gal (79 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 21 gal (79 L) |
| Turning Radius | 11.6 ft in (3530 mm) |
| Tire Size Front - 2wd / 4wd | 11L-16,12PR F3 |
| Rear Tires Size 2wd/4wd | 19.5L-24,10PR R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | 4-speed helical gear, synchronized, collar shift transmission with hydraulic reverser |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.1 mph (35.6 km/h) |
| Max Speed Reverse | 25.6 mph (41.2 km/h) |
Hydraulic
| Pump Type | Radial pistons |
| Pump Flow Capacity | 35 gal/min (133 L/min) |
| Relief Valve Pressure | 2755 psi (19000 kPa) |
