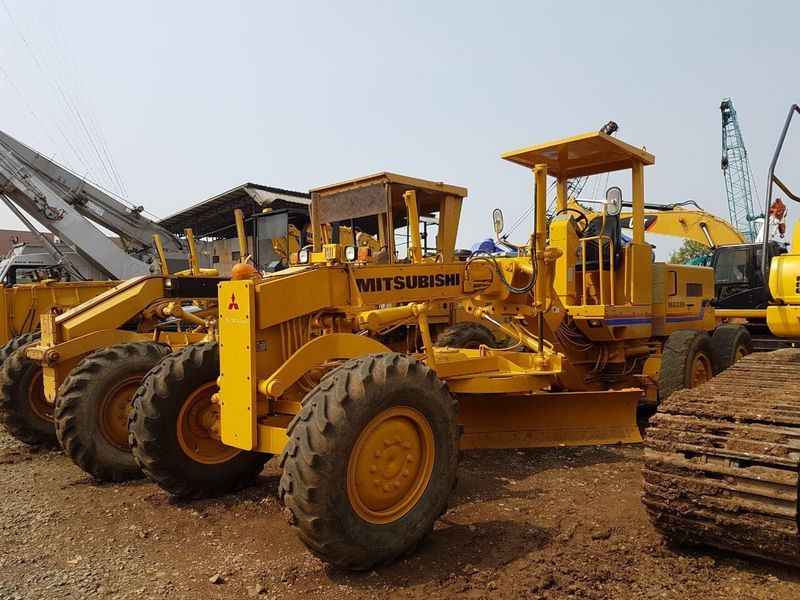

Mitsubishi MG460 VHP
Browse All Mitsubishi or Motor Grader Models
Contents:
Dimensions
| Overall Length | 28.11 ft in (8565 mm) |
| Width Over Tires | 7.94 ft in (2420 mm) |
| Height To Top Of Isomount Cab | 11.24 ft in (3425 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | 6D24-TUN |
| Net Power Gear 1-2 | 155.6 hp (116 kw) |
| Power Measured @ | 2000 rpm |
| Max Power | 185.1 hp (138 kw) |
| Net Power Gears 7-8 | 8.1 hp (6 kw) |
| Displacement | 732.3 cu in (12 L) |
Operational
| Std Operation Weight - Total | 39021.9 lb (17700 kg) |
Steering
| Articulation Angle | 29 degrees |
| Turning Radius | 22.7 ft in (6.9 m) |
Transmission
| Transmission Type | Powershift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 8 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 23 mph (37 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
Moldboard
| Moldboard Width | 12.2 ft in (3710 mm) |
| Moldboard Height | 24.1 in (610 mm) |
| Moldboard Thickness | 0.8 in (19 mm) |
Circle
| Max Reach Outside Tires - Left | 77.6 in (1970 mm) |
| Max Reach Outside Tires - Right | 78.8 in (2000 mm) |
| Max Lift Above Ground | 18.6 in (470 mm) |
| Blade Tip Angle - Front | 36 degrees |
| Blade Tip Angle - Rear | 81 degrees |
