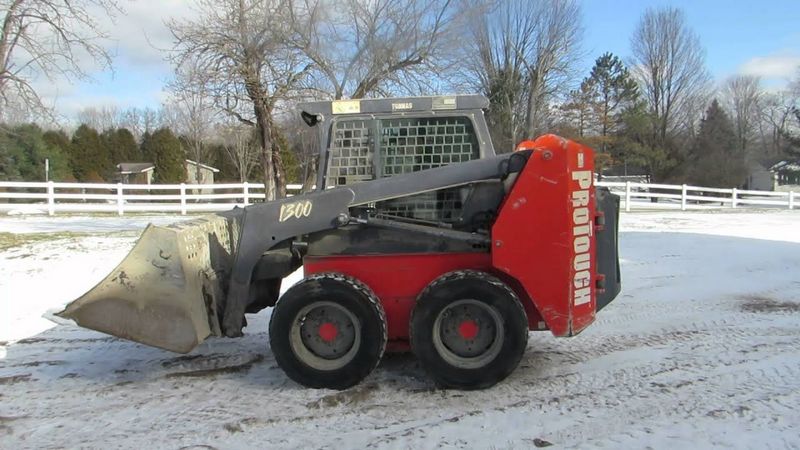

Thomas 1300
Browse All Thomas or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.55 ft in (3213 mm) |
| Width Over Tires | 4.42 ft in (1346 mm) |
| Ground Clearance | 6.5 in (165 mm) |
| Height To Top Of Cab | 6.15 ft in (1873 mm) |
| Wheelbase | 2.92 ft in (889 mm) |
| Length W/O Bucket | 8.57 ft in (2610 mm) |
| Clearance At Max Lift And Dump | 7.46 ft in (2271 mm) |
| Reach At Max Lift And Dump | 22.01 in (559 mm) |
| Turning Radius From Center - Machine Rear | 30.5 in (774.5 mm) |
| Turning Radius From Center - Inc Bucket | 35 in (889 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | V1903E |
| Gross Power | 43 hp (32 kw) |
| Displacement | 113.3 cu in (1.9 L) |
Operational
| Operational Weight | 4800 lb (2177.3 kg) |
| Hydraulic System Fluid Capacity | 8.1 gal (30.3 L) |
| Operating Speed | 6.3 mph (10 km/h) |
Loader
| Breakout Force | 3260 lb (1478.8 kg) |
| Operating Load Rating | 1300 lb (589.7 kg) |
Hydraulic
| Pump Flow Capacity | 14.5 gal/min (54.9 L/min) |
| Relief Valve Pressure | 2400 psi (16547.5 kPa) |
