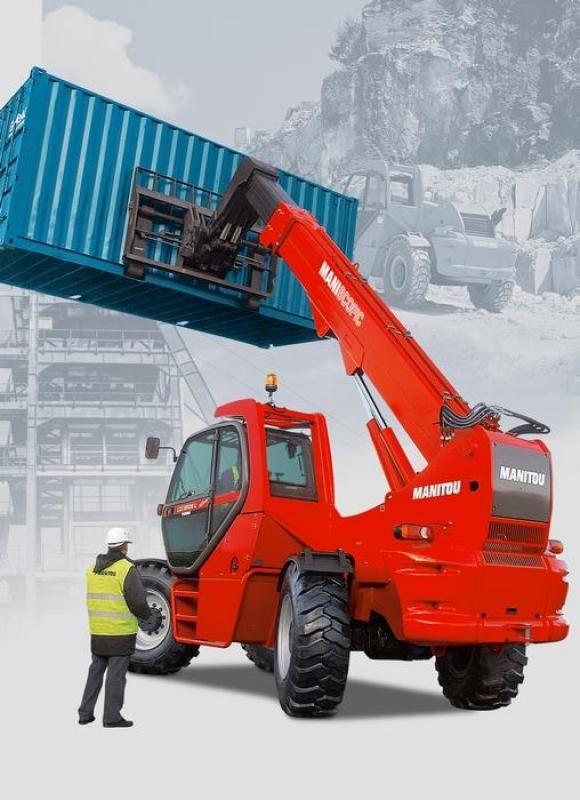

Manitou MHT 10120 L Turbo
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.53 ft in (5950 mm) |
| Ground Clearance | 17.52 ft in (445 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 9.52 ft in (2900 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Turning Radius Outside Tires | 14.86 ft in (4528 mm) |
Lift
| Max Lift Height | 31.57 ft in (9620 mm) |
| Max Forward Reach | 17.56 ft in (5350 mm) |
| Max Load At Max Reach | 6393.41 lb (2900 kg) |
| Max Load At Max Height | 15432.36 lb (7000 kg) |
| Max Lift Capacity | 26455.48 lb (12000 kg) |
Engine
| Engine Make | 2345 |
| Engine Model | OM 904 LA Turbo |
| Gross Power | 174.4 hp (130 kw) |
| Max Torque | 497.9 lb ft (675 Nm) |
| Displacement | 259.4 cu in (4.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 37478.6 lb (17000 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Hydraulic System Fluid Capacity | 76.7 gal (290 L) |
| Operating Voltage | 12 V |
| Drawbar Pull | 25420.7 lb (11530.6 kg) |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | Rexroth |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | piston load sensing haute pression |
| Pump Flow Capacity | 43.6 gal/min (165 L/min) |
| Relief Valve Pressure | 5076.4 psi (35000 kPa) |
