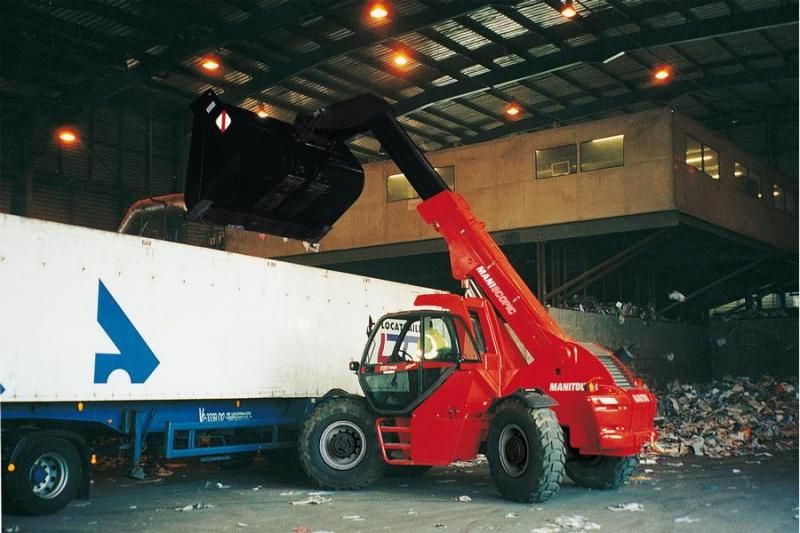

Manitou MHT 7140 Turbo
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.62 ft in (5980 mm) |
| Ground Clearance | 17.52 ft in (445 mm) |
| Width Over Tires | 8.14 ft in (2480 mm) |
| Overall Height | 9.63 ft in (2935 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Turning Radius Outside Tires | 17.69 ft in (5390 mm) |
Lift
| Max Lift Height | 22.97 ft in (7000 mm) |
| Max Forward Reach | 11.49 ft in (3500 mm) |
| Max Load At Max Reach | 12786.82 lb (5800 kg) |
| Max Load At Max Height | 19841.61 lb (9000 kg) |
| Max Lift Capacity | 30864.72 lb (14000 kg) |
Engine
| Engine Make | 2345 |
| Engine Model | OM 904 LA Turbo |
| Gross Power | 173 hp (129 kw) |
| Max Torque | 486.8 lb ft (660 Nm) |
| Displacement | 259.4 cu in (4.3 L) |
Operational
| Operating Weight | 45349.1 lb (20570 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Hydraulic System Fluid Capacity | 76.7 gal (290 L) |
| Operating Voltage | 12 V |
| Drawbar Pull | 34868.4 lb (15816 kg) |
| Tire Size | 16.00R25 |
Transmission
| Transmission Type | Rexroth |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | piston high pressure load sensing |
| Pump Flow Capacity | 45 gal/min (170 L/min) |
| Relief Valve Pressure | 5076.4 psi (35000 kPa) |
