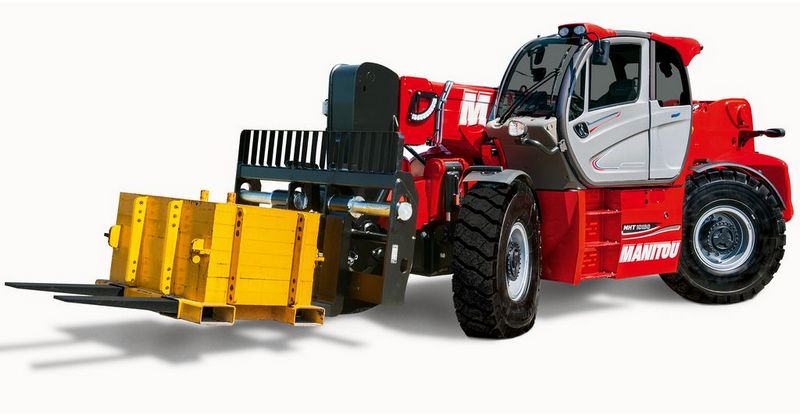

Manitou MHT 10180
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21.1 ft in (6431.28 mm) |
| Ground Clearance | 1.5 ft in (457.2 mm) |
| Width Over Tires | 8.31 ft in (2529.84 mm) |
| Overall Height | 9.1 ft in (2773.68 mm) |
| Wheelbase | 12.4 ft in (3779.52 mm) |
| Weight | 52910.94 lb (24000 kg) |
| Turning Radius Outside Tires | 18 ft in (5486.4 mm) |
Lift
| Max Lift Height | 31.7 ft in (9662.16 mm) |
| Max Forward Reach | 18.3 ft in (5577.84 mm) |
| Max Lift Capacity | 39683.21 lb (18000 kg) |
| Boom Extension Time - Unladen | 13.5 sec |
| Lowering Time - Unladen | 25 sec |
| Lifting Time - Unladen | 33 sec |
| Dump | 7 sec |
| Crowd | 7 sec |
| Boom Retraction Time - Unladen | 13.4 sec |
Engine
| Fuel | Diesel |
| Emission Tier Level | Stage IV / Tier 4 Final |
| Injection System | Direct |
| Number Of Cylinders | 4 |
| Engine Make | Mercedes |
| Engine Type | OM 934 LA. E4-3 |
| Gross Power | 176 hp (131.3 kw) |
| Cooling System | Water |
| Max Torque | 553.2 lb ft (750 Nm) |
| Displacement | 18990.6 cu in (311.2 L) |
| System Voltage | 24 V |
Operational
| Hydraulic System Fluid Capacity | 76.6 gal (290 L) |
| Drawbar Pull | 35901 lb (16284.5 kg) |
Transmission
| Number Of Wheels Front | 2 |
| Number Of Wheels Rear | 2 |
| Driving Position Noise Levels | 80 dB |
| Environmental Noise Levels | 107 dB |
| Vibration Affecting Hands/Arms | 2.5 sec |
| Max Speed | 15.5 mph (25 km/h) |
| Transmission Type | Hydrostatic |
Hydraulic
| Pressure | 5076.4 psi (35000 kPa) |
