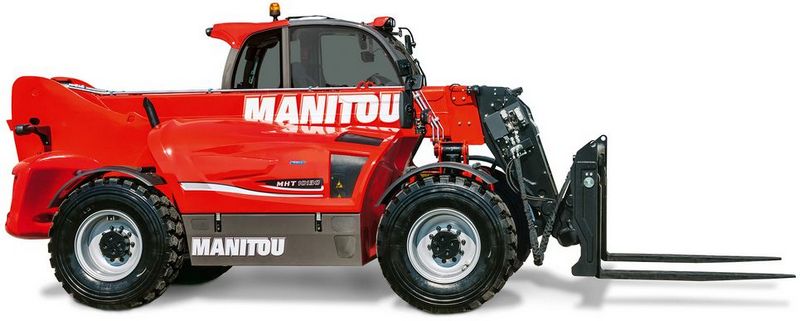

Manitou MHT 10130
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.2 ft in (6156.96 mm) |
| Ground Clearance | 1.5 ft in (457.2 mm) |
| Width Over Tires | 8.2 ft in (2499.36 mm) |
| Overall Height | 9.1 ft in (2773.68 mm) |
| Wheelbase | 11.1 ft in (3383.28 mm) |
| Weight | 40763.47 lb (18490 kg) |
| Turning Radius Outside Tires | 17.61 ft in (5364.48 mm) |
Lift
| Max Lift Height | 31.7 ft in (9662.16 mm) |
| Max Forward Reach | 16.12 ft in (4913.38 mm) |
| Max Lift Capacity | 28660.1 lb (13000 kg) |
| Boom Extension Time - Unladen | 16.11 sec |
| Lowering Time - Unladen | 13.8 sec |
| Lifting Time - Unladen | 15.2 sec |
| Dump | 5.3 sec |
| Crowd | 6.6 sec |
| Boom Retraction Time - Unladen | 10 sec |
Engine
| Fuel | Diesel |
| Emission Tier Level | Stage IV / Tier 4 Final |
| Injection System | Direct |
| Number Of Cylinders | 4 |
| Engine Make | Mercedes |
| Engine Type | OM 934 LA. E4-3 |
| Gross Power | 176 hp (131.3 kw) |
| Cooling System | Water |
| Max Torque | 553.2 lb ft (750 Nm) |
| Displacement | 18990.6 cu in (311.2 L) |
| System Voltage | 24 V |
Operational
| Hydraulic System Fluid Capacity | 76.6 gal (290 L) |
| Drawbar Pull | 24279 lb (11012.8 kg) |
Transmission
| Number Of Wheels Front | 2 |
| Number Of Wheels Rear | 2 |
| Driving Position Noise Levels | 80 dB |
| Environmental Noise Levels | 107 dB |
| Vibration Affecting Hands/Arms | 2.5 sec |
| Max Speed | 19.3 mph (31 km/h) |
| Transmission Type | Hydrostatic |
Hydraulic
| Pressure | 4351.2 psi (30000 kPa) |
