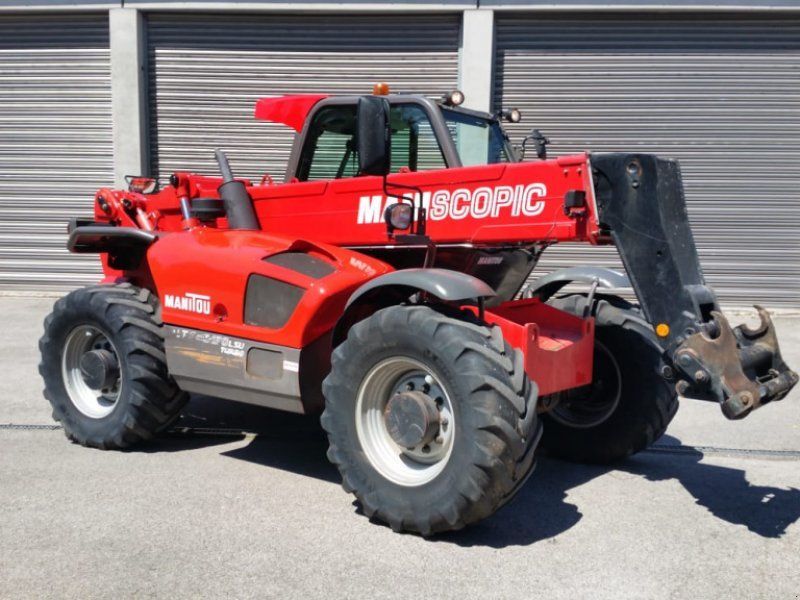

Manitou MLT 845 HT LSU
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.11 ft in (5214 mm) |
| Ground Clearance | 17.13 ft in (435 mm) |
| Width Over Tires | 7.86 ft in (2395 mm) |
| Overall Height | 9.01 ft in (2745 mm) |
| Wheelbase | 9.09 ft in (2770 mm) |
| Turning Radius Outside Tires | 13.63 ft in (4153 mm) |
Lift
| Max Lift Height | 24.78 ft in (7550 mm) |
| Max Forward Reach | 15 ft in (4570 mm) |
| Max Load At Max Reach | 2755.78 lb (1250 kg) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Lift Capacity | 9920.81 lb (4500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 100 hp (74.5 kw) |
| Max Torque | 303.9 lb ft (412 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 19555.1 lb (8870 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Hydraulic System Fluid Capacity | 33.3 gal (126 L) |
| Drawbar Pull | 18446.8 lb (8367.3 kg) |
| Tire Size | 445/70 R 24 MPT IT 510 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | Load sensing pump |
| Pump Flow Capacity | 39.7 gal/min (150 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
