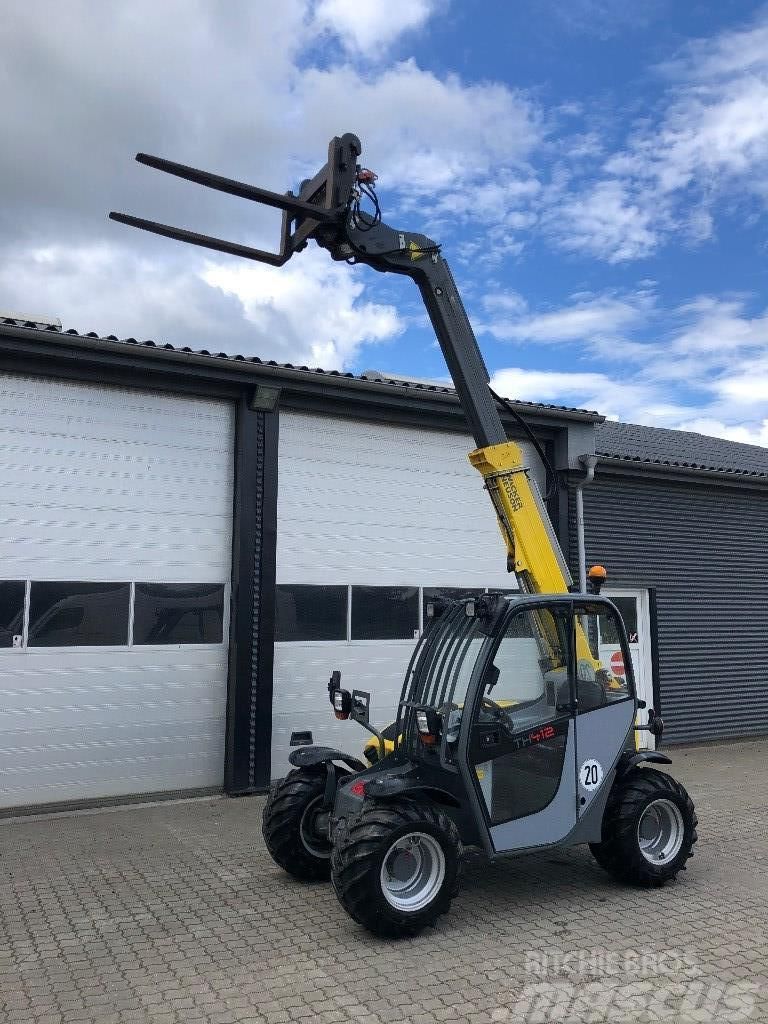

Wacker Neuson TH412
Browse All Wacker Neuson or Telescopic Forklift Models
Contents:
Dimensions
| Turning Radius Outside Tires | 8.56 ft in (2607 mm) |
| Dump Angle Pallet Fork Above | 70 degrees |
| Dump Angle Standard Bucket Above | 31 degrees |
| Length - With Bucket | 152.72 in (3879 mm) |
| Length Incl. Tool Frame | 114.81 in (2916 mm) |
| Maximum Width | 5118.12 ft in (1560 m) |
| Tilt-In Angle Pallet Fork Below | 8 degrees |
| Tilt-In Angle Standard Bucket Below | 44 degrees |
| Cab Width | 2171.92 ft in (662 m) |
Lift
| Lift Height Pin Height | 177.29 in (4503 mm) |
| Payload Max | 2645.55 lb (1200 kg) |
| Payload At Max. Lift Height | 2645.55 lb (1200 kg) |
| Payload At Max. Span | 970.04 lb (440 kg) |
Engine
| Emission Tier Level | IIIA |
| Engine Make | Yanmar |
| Gross Power | 30.4 hp (22.6 kw) |
| Power Measured @ | 3000 rpm |
Operational
| Operating Weight | 5952.5 lb (2700 kg) |
| Hydraulic System Fluid Capacity | 11.1 gal (42 L) |
| Tire Size | 10.0/75 - 15.3 AS ET-40 |
| Steering Angle | 76 degrees |
Transmission
| Drive System | Hydrostatic |
| Max Speed - Forward | 4.4 mph (7 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
