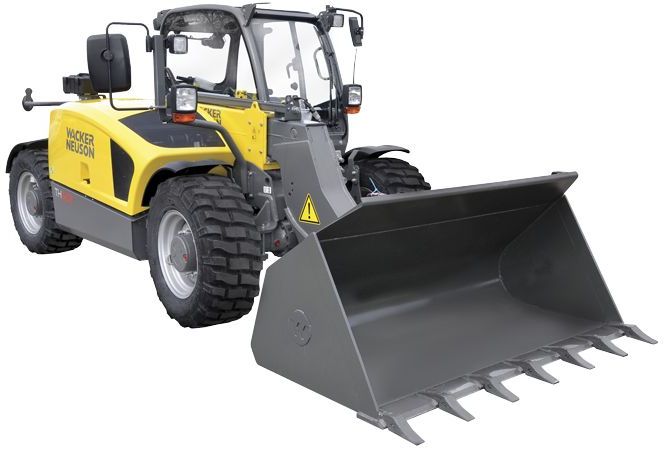

Wacker Neuson TH522
Browse All Wacker Neuson or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 0.84 ft in (256 mm) |
| Overall Height | 19.93 ft in (6074 mm) |
| Wheelbase | 8.04 ft in (2449 mm) |
| Length W/O Bucket | 12.3 ft in (3747 mm) |
| Overall Length | 15.02 ft in (4576 mm) |
| Overall Width | 5.94 ft in (1808 mm) |
| Dump Angle | 34.5 degrees |
| Overhang Rear | 1.55 ft in (472 mm) |
| Dump Height - Maximum | 122.17 in (3103 mm) |
| Height To Top Of Cab | 76.78 in (1950 mm) |
| Track Width | 5019.69 ft in (1530 m) |
| Turning Radius - Inside | 3.92 ft in (1193 mm) |
| Turning Radius Outside Tires | 10.77 ft in (3281 mm) |
| Rollback, Bucket At Full Height | 46.5 degrees |
| Rollback, Bucket On Ground | 41 degrees |
Lift
| Payload At Max. Lift Height | 4078.56 lb (1850 kg) |
| Payload At Max. Span | 1763.7 lb (800 kg) |
| Lift Height Pin Height | 215.4 in (5471 mm) |
Engine
| Emission Tier Level | IIIB |
| Engine Make | Perkins |
| Gross Power | 44.7 hp (33.4 kw) |
| Power Measured @ | 2800 rpm |
Operational
| Operating Weight | 9259.5 lb (4200 kg) |
| Fuel Capacity | 18.5 gal (70 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Tire Size | 10.5/80-18 AS ET0 |
| Steering Angle | 80 degrees |
| Travel Speed | 18.7 mph (30 km/h) |
| Hydraulic Tank | 14.6 gal (55 L) |
