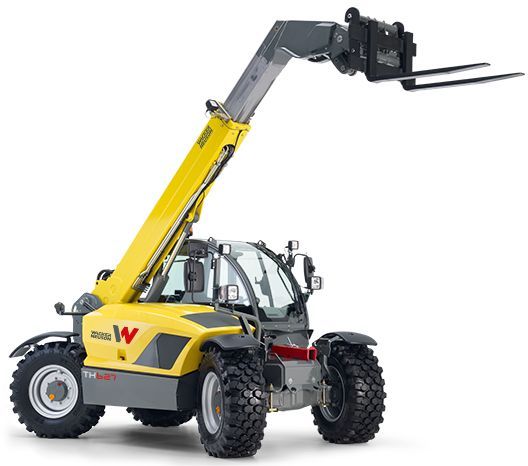

Wacker Neuson TH627
Browse All Wacker Neuson or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1 ft in (302 mm) |
| Width Over Tires | 6.44 ft in (1960 mm) |
| Wheelbase | 8.7 ft in (2650 mm) |
| Dump Angle | 40 degrees |
| Dump Height - Maximum | 207.88 in (5280 mm) |
| Dump Reach | 26.78 in (680 mm) |
| Length - With Bucket | 195.2 in (4958 mm) |
| Overall Length | 14.44 ft in (4400 mm) |
| Cab Height | 82.68 in (2100 mm) |
| Cab Width | 2706.7 ft in (825 m) |
| Track Width | 5446.2 ft in (1660 m) |
| Turning Radius Outside Tires | 12.05 ft in (3670 mm) |
Lift
| Max Lift Height | 18.8 ft in (5730 mm) |
| Range Max | 124.26 in (3156 mm) |
| Total Rotation Angle | 150 degrees |
| Bucket Capacity | 1.12 yd3 (0.85 m3) |
| Payload At Max Reach | 2204.63 lb (1000 kg) |
| Payload At Max. Lift Height | 3968.33 lb (1800 kg) |
Engine
| Emission Tier Level | IIIB |
| Engine Make | Kohler |
| Gross Power | 74.3 hp (55.4 kw) |
| Power Measured @ | 3000 rpm |
| Displacement | 151.5 cu in (2.5 L) |
Operational
| Operating Weight | 10802.7 lb (4900 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Tire Size | 10.0/75 - 15.3 AS ET-40 |
| Steering Angle | 76 degrees |
Hydraulic
| Pump Type | Gear Pump |
| Pump Flow Capacity | 23.8 gal/min (90 L/min) |
| Relief Valve Pressure | 3481 psi (24000.1 kPa) |
