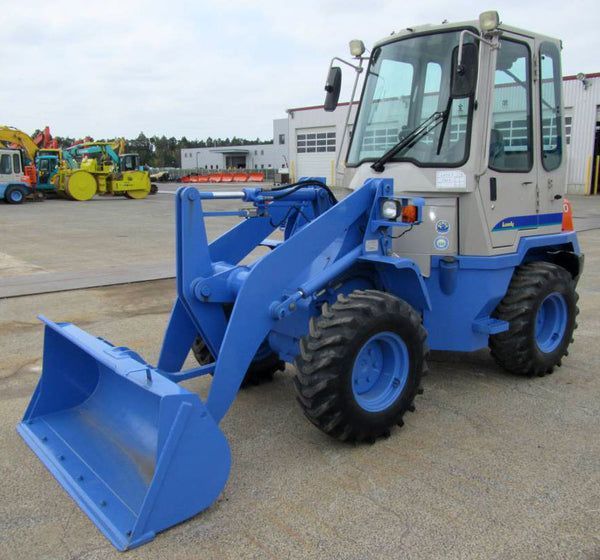

Hitachi LX20-7
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.08 ft in (2155 mm) |
| Bucket Capacity - Heaped | 0.53 yd3 (0.4 m3) |
| Bucket Capacity - Struck | 0.5 yd3 (0.38 m3) |
| Bucket Width | 5.16 ft in (1570 mm) |
| Breakout Force | 6170 lb (27 kN) |
Dimensions
| Ground Clearance | 0.84 ft in (255 mm) |
| Length With Bucket On Ground | 13.59 ft in (4140 mm) |
| Width Over Tires | 4.94 ft in (1505 mm) |
| Height To Top Of Cab | 8.08 ft in (2460 mm) |
| Wheelbase | 5.84 ft in (1780 mm) |
| Hinge Pin - Max Height | 8.81 ft in (2685 mm) |
| Reach At Max Lift And Dump | 2.68 ft in (815 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D1503-DI-K2A |
| Net Power | 28 hp (21.3 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 91.5 cu in (1.5 L) |
Operational
| Operating Weight | 5831.3 lb (2645 kg) |
| Fuel Capacity | 13.2 gal (50 L) |
| Hydraulic System Fluid Capacity | 11.1 gal (42 L) |
| Engine Oil Fluid Capacity | 1.5 gal (5.6 L) |
| Cooling System Fluid Capacity | 1.6 gal (5.7 L) |
| Front Axle/Diff Fluid Capacity | 1.2 gal (4.5 L) |
| Rear Axle/Diff Fluid Capacity | 1.2 gal (4.5 L) |
| Static Tipping Weight | 3637.7 lb (1650 kg) |
| Turning Radius | 10 ft in (3040 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Rear Axle Oscillation | 16 degrees |
| Tire Size | 15.5/60-18-8PR (L2) tubeless, nylon body |
Transmission
| Transmission Type | Hydrostatic transmission automatically controls power and speed with electrically controlled |
| Max Speed - Forward | 9.3 mph (15 km/h) |
| Max Speed - Reverse | 9.4 mph (15 km/h) |
Hydraulic System
| Relief Valve Setting | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 8.9 gal/min (33.6 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1 sec |
| Lower Time | 3.2 sec |
| Pump Type | gear type |
