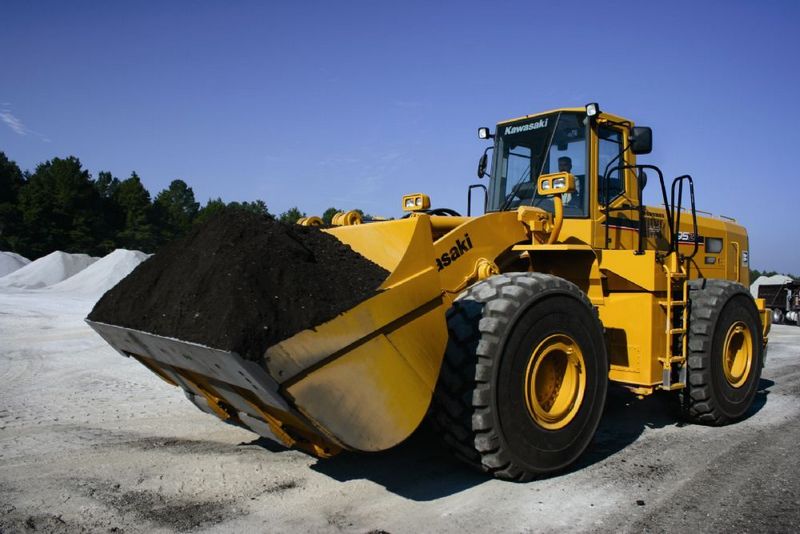

Kawasaki 92ZV-2
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.68 ft in (3255 mm) |
| Bucket Capacity - Heaped | 6 yd3 (4.59 m3) |
| Bucket Capacity - Struck | 5.2 yd3 (3.98 m3) |
| Bucket Width | 10.41 ft in (3170 mm) |
| Breakout Force | 50900 lb (226.42 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 29.7 ft in (9050 mm) |
| Width Over Tires | 9.96 ft in (3035 mm) |
| Height To Top Of Cab | 11.65 ft in (3550 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.83 ft in (4520 mm) |
| Reach At Max Lift And Dump | 4.24 ft in (1290 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSM11 |
| Net Power | 284 hp (211.8 kw) |
| Gross Power | 300 hp (223.8 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1121 lb ft (1519.9 Nm) |
| Displacement | 660 cu in (10.9 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged with Aftercooler |
| Torque Rise | 47 % |
Operational
| Operating Weight | 58025 lb (26319.7 kg) |
| Fuel Capacity | 112.1 gal (424 L) |
| Hydraulic System Fluid Capacity | 68.2 gal (258 L) |
| Engine Oil Fluid Capacity | 9.8 gal (37 L) |
| Cooling System Fluid Capacity | 19.1 gal (72 L) |
| Transmission Fluid Capacity | 15.4 gal (58 L) |
| Front Axle/Diff Fluid Capacity | 20.9 gal (79 L) |
| Rear Axle/Diff Fluid Capacity | 22.5 gal (85 L) |
| Static Tipping Weight | 43560 lb (19758.5 kg) |
| Turning Radius | 19.8 ft in (6025 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 26.5-25-20PR |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.9 mph (36.7 km/h) |
| Max Speed - Reverse | 23.8 mph (38.3 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 48.9 gal/min (185 L/min) |
| Raise Time | 6.4 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.3 sec |
| Pump Type | Gear |
