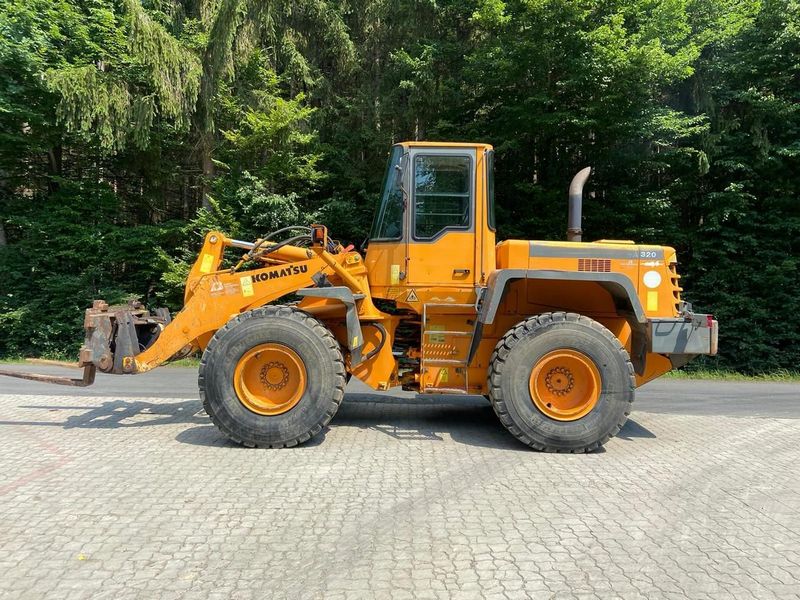

Komatsu WA320-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.13 ft in (2780 mm) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Capacity - Struck | 3.01 yd3 (2.3 m3) |
| Bucket Width | 8.99 ft in (2740 mm) |
| Breakout Force | 27600 lb (122.78 kN) |
Dimensions
| Ground Clearance | 1.09 ft in (330 mm) |
| Length With Bucket On Ground | 24.51 ft in (7470 mm) |
| Width Over Tires | 8.31 ft in (2530 mm) |
| Height To Top Of Cab | 10.65 ft in (3245 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Hinge Pin - Max Height | 12.52 ft in (3815 mm) |
| Reach At Max Lift And Dump | 3.63 ft in (1105 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D108 |
| Gross Power | 162.3 hp (121 kw) |
| Power Measured @ | 2380 rpm |
| Displacement | 436.4 cu in (7.2 L) |
Operational
| Operating Weight | 29431.8 lb (13350 kg) |
| Fuel Capacity | 58.4 gal (221 L) |
| Static Tipping Weight | 25198.9 lb (11430 kg) |
| Turning Radius | 20 ft in (6080 mm) |
| Tire Size | 17.5-25-12PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.2 mph (34 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
