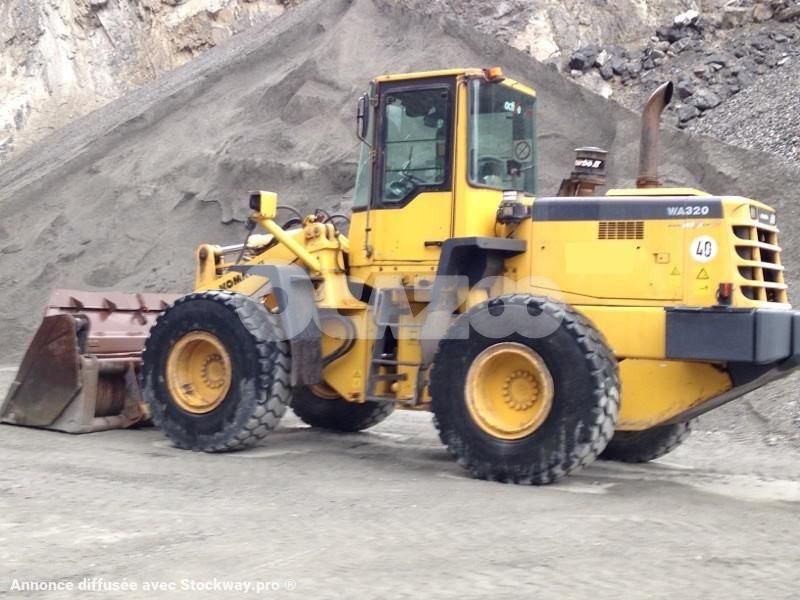

Komatsu WA320-3 Active+
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.41 ft in (2868 mm) |
| Bucket Capacity - Heaped | 3.41 yd3 (2.6 m3) |
| Bucket Width | 8.99 ft in (2740 mm) |
| Breakout Force | 28325.93 lb (126 kN) |
Dimensions
| Ground Clearance | 1.24 ft in (375 mm) |
| Length With Bucket On Ground | 24.14 ft in (7357 mm) |
| Width Over Tires | 8.46 ft in (2577 mm) |
| Height To Top Of Cab | 10.9 ft in (3320 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Hinge Pin - Max Height | 12.72 ft in (3877 mm) |
| Reach At Max Lift And Dump | 3.49 ft in (1063 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D114 E-1 |
| Gross Power | 166 hp (123.8 kw) |
| Power Measured @ | 2350 rpm |
| Max Torque | 495 lb ft (671 Nm) |
| Displacement | 504.7 cu in (8.3 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 30754.5 lb (13950 kg) |
| Fuel Capacity | 58.4 gal (221 L) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
| Engine Oil Fluid Capacity | 6 gal (22.4 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Transmission Fluid Capacity | 15.9 gal (60 L) |
| Front Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Rear Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Static Tipping Weight | 24559.5 lb (11140 kg) |
| Turning Radius | 18.2 ft in (5535 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 20.5 R25 XHA LE |
Transmission
| Transmission Type | fully automatic 4 speed full power shift with 'kickdown' and 'gear-hold' |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.4 mph (37.6 km/h) |
| Max Speed - Reverse | 24.5 mph (39.3 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 62.7 gal/min (237 L/min) |
| Raise Time | 5.1 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3 sec |
