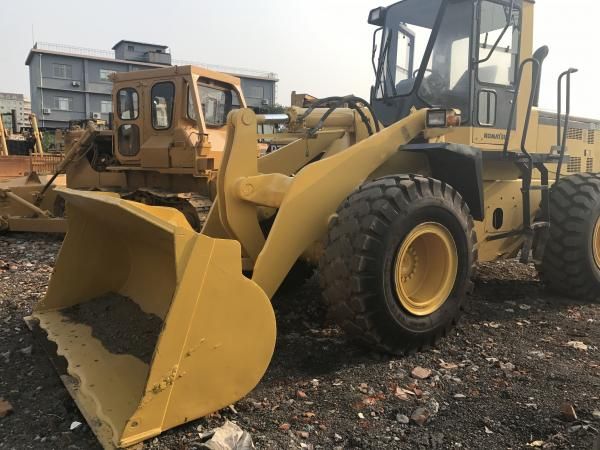

Komatsu WA320-3 CUSTOM
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.36 ft in (2850 mm) |
| Bucket Capacity - Struck | 3.01 yd3 (2.3 m3) |
| Bucket Width | 8.99 ft in (2740 mm) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 24.32 ft in (7410 mm) |
| Width Over Tires | 8.49 ft in (2585 mm) |
| Height To Top Of Cab | 10.95 ft in (3335 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Hinge Pin - Max Height | 12.75 ft in (3885 mm) |
| Reach At Max Lift And Dump | 3.4 ft in (1035 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D102E |
| Gross Power | 152.9 hp (114 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 358.9 cu in (5.9 L) |
Operational
| Operating Weight | 29431.8 lb (13350 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Turning Radius | 20 ft in (6080 mm) |
| Tire Size | 20.5-25 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.2 mph (34 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
