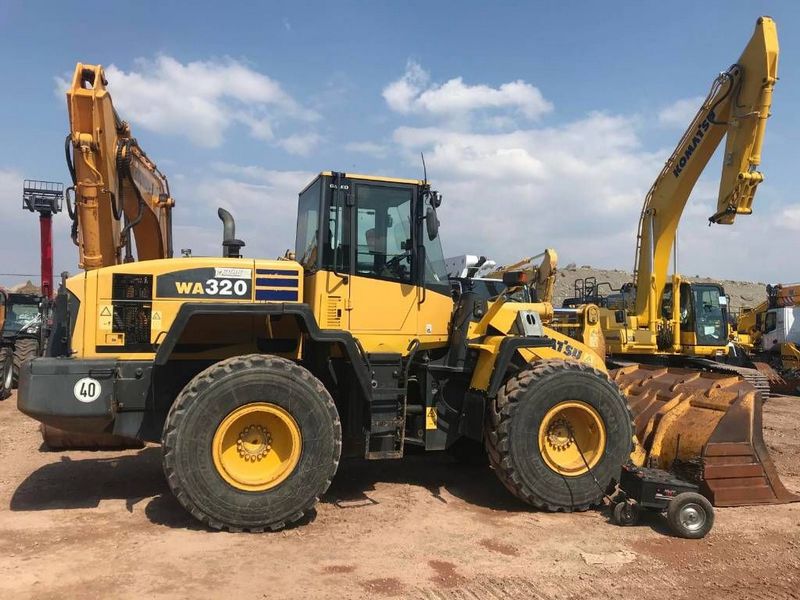

Komatsu WA320-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.69 ft in (2646 mm) |
| Breakout Force | 29000.36 lb (129 kN) |
| Bucket Capacity - Heaped | 3.41 yd3 (2.6 m3) |
| Bucket Width | 9.16 ft in (2790 mm) |
Dimensions
| Ground Clearance | 1.4 ft in (425 mm) |
| Length With Bucket On Ground | 25.09 ft in (7645 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Reach At Max Lift And Dump | 5.16 ft in (1570 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | SAA6D102E-2-A |
| Net Power | 166.3 hp (124 kw) |
Operational
| Operating Weight | 24361.1 lb (11050 kg) |
| Fuel Capacity | 60.3 gal (228 L) |
| Static Tipping Weight | 20525.1 lb (9310 kg) |
| Tire Size | 20.5X25 12PR L3 |
Transmission
| Transmission Type | hydrostatic |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 23.7 mph (38 km/h) |
