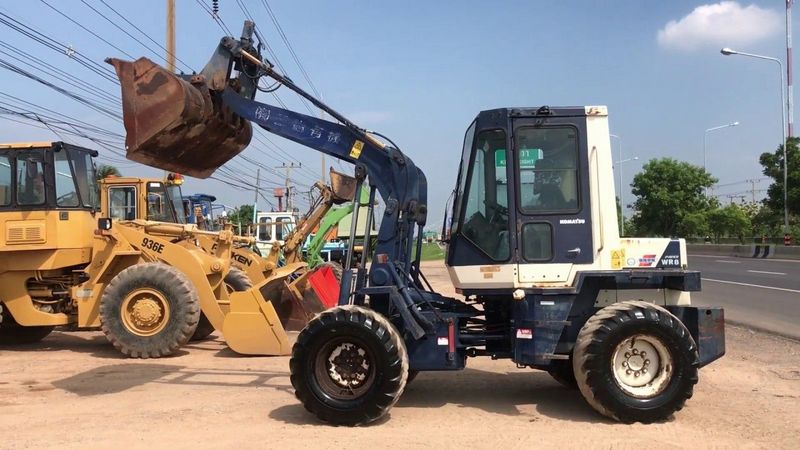

Komatsu WR8
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.52 ft in (2900 mm) |
| Bucket Width | 6.5 ft in (1980 mm) |
| Bucket Capacity - Heaped | 1.05 yd3 (0.8 m3) |
Dimensions
| Ground Clearance | 1.07 ft in (325 mm) |
| Length With Bucket On Ground | 16.62 ft in (5065 mm) |
| Width Over Tires | 6.27 ft in (1910 mm) |
| Height To Top Of Cab | 9.19 ft in (2800 mm) |
| Wheelbase | 8.04 ft in (2450 mm) |
| Hinge Pin - Max Height | 11.78 ft in (3590 mm) |
| Reach At Max Lift And Dump | 4.3 ft in (1310 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D95L |
| Gross Power | 55.3 hp (41.2 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 199 cu in (3.3 L) |
Operational
| Operating Weight | 12566.4 lb (5700 kg) |
| Fuel Capacity | 16.7 gal (63 L) |
| Turning Radius | 15.5 ft in (4705 mm) |
| Tire Size | 17.5/65 20-10PR |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 18.1 mph (29 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
