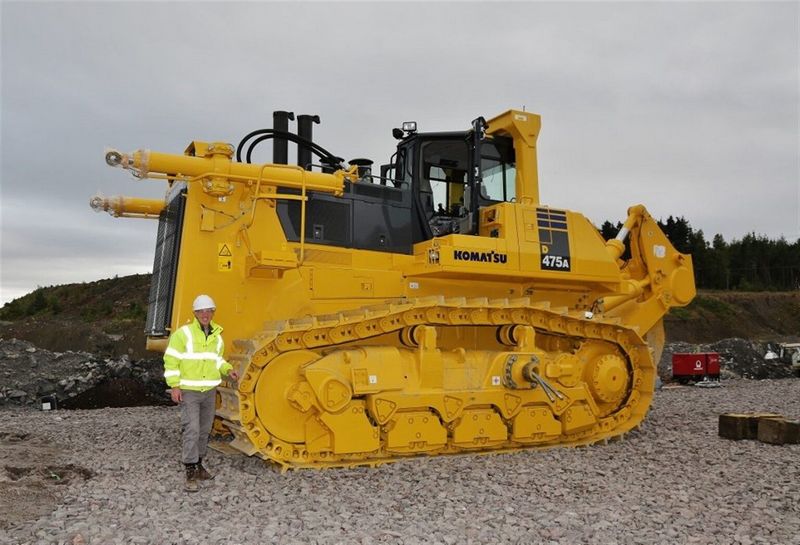

Komatsu D475A-5 Tier 2
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 34.54 ft in (10525 mm) |
| Width Over Tracks | 9.08 ft in (2770 mm) |
| Height To Top Of Cab | 15.25 ft in (4646 mm) |
| Ground Clearance | 2.17 ft in (655 mm) |
Undercarriage
| Standard Shoe Size | 32 in (810 mm) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 41 |
| Ground Pressure | 16.2 psi (112 kPa) |
| Ground Contact Area | 11360 in2 (7.33 m2) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2238 |
| Engine Model | SAA12V140E-3 |
| Gross Power | 899 hp (671 kw) |
| Net Power | 890 hp (664 kw) |
| Displacement | 1860 cu in (30.5 L) |
| Aspiration | turbocharged, air-to-air aftercooled |
Operational
| Operating Weight | 249560 lb (113200 kg) |
| Fuel Capacity | 441 gal (1670 L) |
| Cooling System Fluid Capacity | 55.5 gal (210 L) |
| Engine Oil Capacity | 32 gal (121 L) |
| Hydraulic Fluid Capacity | 48 gal (180 L) |
| Final Drives Fluid Capacity | 19.8 gal (75 L) |
Transmission
| Transmission Type | Komatsu TORQFLOW transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7 mph (11.2 km/h) |
| Max Speed - Reverse | 8.7 mph (14 km/h) |
Hydraulic System
| Pump Type | double-acting, piston |
| Relief Valve Pressure | 3980 psi (27441.2 kPa) |
Standard Blade
| Width | 21.3 ft in (6465 mm) |
| Height | 8.9 in (2690 mm) |
| Cutting Depth | 2.9 in (860 mm) |
