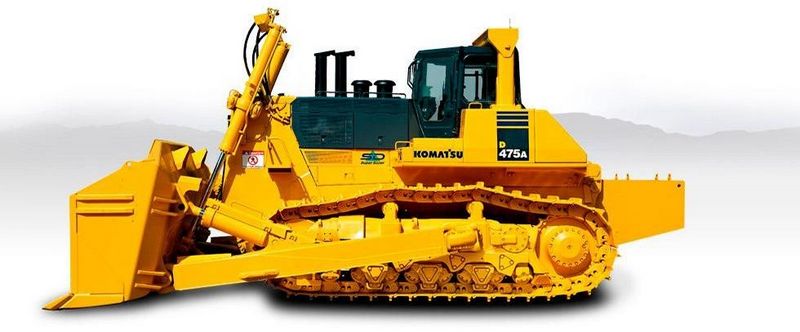

Komatsu D475A-5SD
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 34.54 ft in (10525 mm) |
| Width Over Tracks | 9.08 ft in (2770 mm) |
| Height To Top Of Cab | 15.08 ft in (4590 mm) |
Undercarriage
| Standard Shoe Size | 32 in (810 mm) |
| Ground Pressure | 16.11 psi (111 kPa) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 7 |
| Ground Contact Area | 10960 in2 (7.08 m2) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2238 |
| Engine Model | SDA12V140E |
| Net Power | 860 hp (671 kw) |
| Displacement | 1860 cu in (30.5 L) |
| Aspiration | turbocharged, aftercooled |
Operational
| Operating Weight | 238270 lb (108080 kg) |
| Fuel Capacity | 441 gal (1670 L) |
| Cooling System Fluid Capacity | 72.6 gal (275 L) |
| Engine Oil Capacity | 32 gal (121 L) |
| Final Drives Fluid Capacity | 19.8 gal (75 L) |
Transmission
| Transmission Type | Komatsu TORQFLOW transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (10.9 km/h) |
| Max Speed - Reverse | 8.9 mph (14.3 km/h) |
Hydraulic System
| Pump Type | plunger type hydraulic pump |
| Relief Valve Pressure | 3980 psi (27441.2 kPa) |
| Pump Flow Capacity | 143 gal/min (542 L/min) |
Standard Blade
| Width | 21.3 ft in (6465 mm) |
| Height | 10.6 in (3220 mm) |
| Cutting Depth | 2.9 in (860 mm) |
