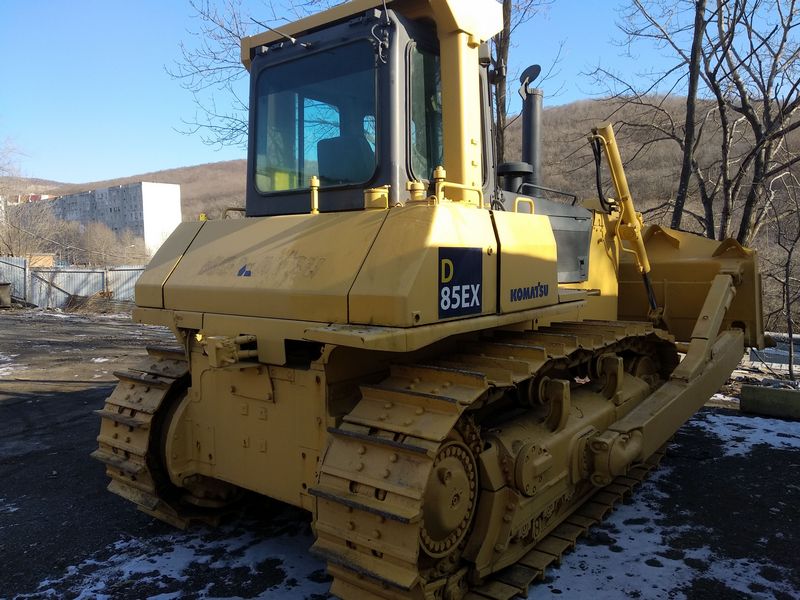

Komatsu D85EX-15EO
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 1.9 ft in (579.12 mm) |
| Width Over Tracks | 2.6 ft in (792.48 mm) |
| Height To Top Of Cab | 4.91 ft in (1493.52 mm) |
| Length W/O Blade | 4 ft in (1219.2 mm) |
Undercarriage
| Track Gauge | 6.7 ft in (2042.16 mm) |
| Standard Shoe Size | 22 in (558.8 mm) |
| Ground Pressure | 10.7 psi (73.78 kPa) |
| Ground Contact Area | 5295 in2 (3.42 m2) |
| Number Of Shoes Per Side | 41 |
| Number Of Track Rollers Per Side | 7 |
| Track Pitch | 10 in (254 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-5 |
| Gross Power | 266 hp (198.4 kw) |
| Net Power | 264 hp (196.9 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 240 lb ft (325.4 Nm) |
| Displacement | 11.1 cu in (0.2 L) |
| Aspiration | Turbo charged |
Operational
| Operating Weight | 46780 lb (21219.1 kg) |
| Fuel Capacity | 129 gal (488.4 L) |
| Cooling System Fluid Capacity | 15.3 gal (58 L) |
| Engine Oil Capacity | 10 gal (37.9 L) |
| Hydraulic Fluid Capacity | 15.9 gal (60.2 L) |
| Powertrain Fluid Capacity | 15.9 gal (60.2 L) |
| Final Drives Fluid Capacity | 6.9 gal (26.2 L) |
Transmission
| Transmission Type | TORQFLOW |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.2 mph (10 km/h) |
| Max Speed - Reverse | 6.2 mph (10 km/h) |
Hydraulic System
| Pump Type | Plunger type |
| Relief Valve Pressure | 3270 psi (22545.9 kPa) |
| Pump Flow Capacity | 51.5 gal/min (195 L/min) |
Standard Blade
| Width | 18.6 ft in (5669.3 mm) |
| Height | 1436 in (36474.4 mm) |
| Capacity | 6.8 yd3 (5.2 m3) |
