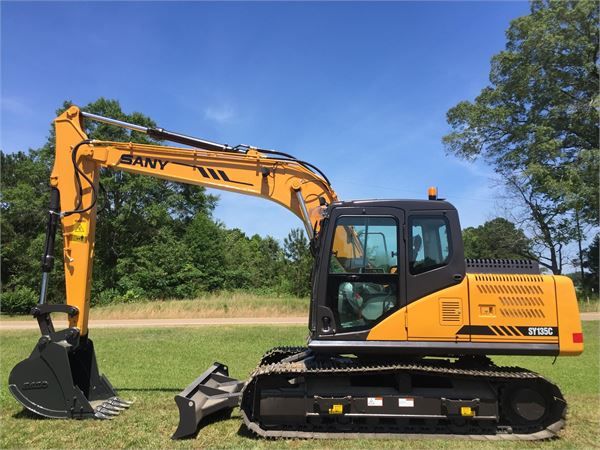

Sany SY135
Browse All Sany or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 25.27 ft in (7700 mm) |
| Shipping Height Of Unit | 9.24 ft in (2815 mm) |
| Max Loading Height | 20.24 ft in (6167 mm) |
| Max Reach Along Ground | 27.3 ft in (8320 mm) |
| Max Vertical Wall Digging Depth | 15.92 ft in (4850 mm) |
| Max Digging Depth | 18.07 ft in (5505 mm) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Width To Outside Of Tracks | 8.37 ft in (2550 mm) |
| Length Of Track On Ground | 9.45 ft in (2880 mm) |
| Tail Swing Radius | 8.21 ft in (2500 mm) |
Undercarriage
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2353 |
| Engine Model | BB-4BG1TRP |
| Gross Power | 92.6 hp (69 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 262.5 cu in (4.3 L) |
Operational
| Operating Weight | 29762.5 lb (13500 kg) |
| Hydraulic Pump Flow Capacity | 64 gal/min (242 L/min) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
