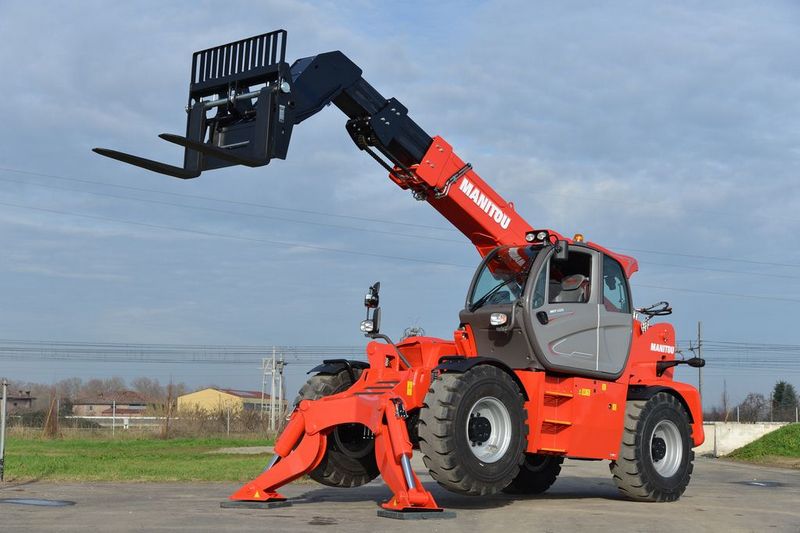

Manitou MHT 1490
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21.2 ft in (6461.76 mm) |
| Ground Clearance | 1.5 ft in (457.2 mm) |
| Width Over Tires | 8.2 ft in (2499.36 mm) |
| Overall Height | 9.1 ft in (2773.68 mm) |
| Wheelbase | 11.1 ft in (3383.28 mm) |
| Weight | 25353.16 lb (11500 kg) |
| Turning Radius Outside Tires | 13.2 ft in (4023.36 mm) |
Lift
| Max Lift Height | 45.11 ft in (13749.53 mm) |
| Max Forward Reach | 31.4 ft in (9570.72 mm) |
| Max Lift Capacity | 19841.61 lb (9000 kg) |
| Boom Extension Time - Unladen | 18.9 sec |
| Lowering Time - Unladen | 12.8 sec |
| Lifting Time - Unladen | 14.9 sec |
| Dump | 5.3 sec |
| Crowd | 6.6 sec |
| Boom Retraction Time - Unladen | 10.8 sec |
Engine
| Fuel | Diesel |
| Emission Tier Level | Stage IV / Tier 4 Final |
| Injection System | Direct |
| Number Of Cylinders | 4 |
| Engine Make | Mercedes |
| Engine Type | OM934LA |
| Gross Power | 176 hp (131.3 kw) |
| Cooling System | Water |
| Max Torque | 553.2 lb ft (750 Nm) |
| Displacement | 18978.4 cu in (311 L) |
| System Voltage | 24 V |
Operational
| Hydraulic System Fluid Capacity | 72.6 gal (274.9 L) |
| Drawbar Pull | 24504 lb (11114.9 kg) |
Transmission
| Number Of Wheels Front | 2 |
| Number Of Wheels Rear | 2 |
| Driving Position Noise Levels | 82 dB |
| Environmental Noise Levels | 106 dB |
| Vibration Affecting Hands/Arms | 2.5 sec |
| Max Speed | 19.2 mph (30.9 km/h) |
| Transmission Type | Hydrostatic |
Hydraulic
| Pressure | 4351.2 psi (30000 kPa) |
